INDUSTRIAL FOLDING DOORS

INDUSTRIAL FOLDING DOORS

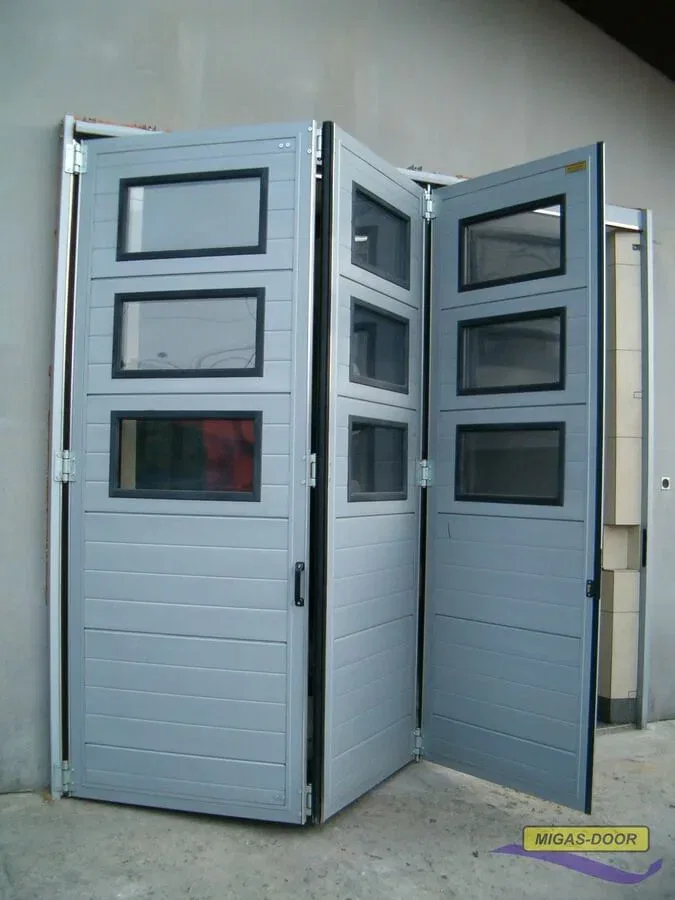

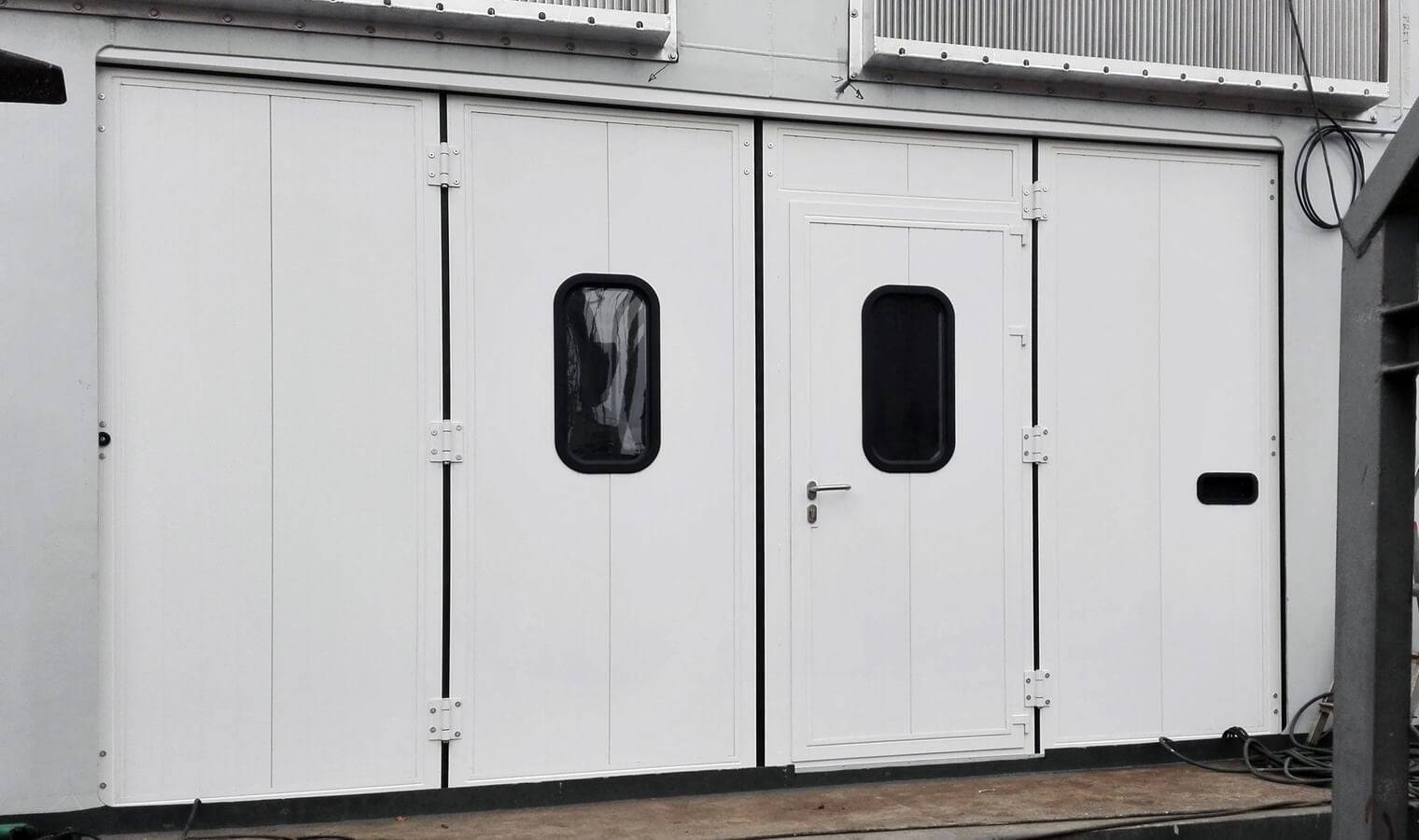

When opened, the leaves are pushed to one or two sides at an angle of 90 degrees in front of or behind the façade plane. It is also possible to open the leaves at an angle of 180 degrees, i.e. parallel to the façade.

Depending on the needs, we manufacture folding doors in two versions, either insulated (with 50 mm polyurethane foam filling) or uninsulated, of T8 trapezoidal sheet metal or of galvanised steel sheet panels with 40 mm polyurethane foam filling. The thermal transmittance coefficient (U value) for the panel is Uk=0.6 W/m²K.

Depending on your needs, folding doors and gates can be fitted with a wicket door, air intake, windows or glazed sections to ensure constant supply of daylight. Moreover, the variety of accessories allows for individual architectural adaptation of the door or gate to the existing facade of the building – sandwich filling, breakdown of leaf widths, colours, type of insulation, etc. Each folding door and gate is equipped with a standard closing gasket.

Insulated doors and gates (made of panels) are equipped as a standard with special sealing brushes (between the wall and the door leaf at the top and bottom). At the customer’s request, it is also possible to install brushes on doors or gates made of trapezoidal sheet metal.

Color

Depending on the needs, the fence spans can be made in any RAL colour.

Additives

Wide choice of windows or lighting panels

By choosing a folding door equipped with additional components, such as windows or glazed sections you can significantly increase the amount of daylight in your garage and make it more functional. The door can also be equipped with ventilation grilles to allow air access.

Automation

Folding doors can be supplied with an electric control system in standard version or in various variants comprising an electronic control system.
